BEAMCUT
ONE ROBOT. EVERY PROFILE. CUT. COPE. BEVEL. MARK. DRILL¹.
ROBOTIC CUTTING SYSTEM FOR BEAMS AND PROFILES
Beamcut automates your entire beam and profile fabrication process in one seamless pass: bolt-ready holes, slots, bevels, copes, and cut-to-length. One compact robot replaces your drill line, punch, coping station, and drilling and milling operations¹, reducing labor, floor space, and processing time.
Beamcut meets AISC and CISC requirements for thermally cut holes in structural bolted connections.
¹ The BC50 includes an optional 3-spindle drilling and milling unit for applications requiring mechanically drilled holes.
REQUEST PRICING OR BROCHURE
Get instant access to our brochure or request a free custom quote for your project.
REQUEST PRICING OR BROCHURE
Get instant access to our brochure or request a free custom quote for your project.

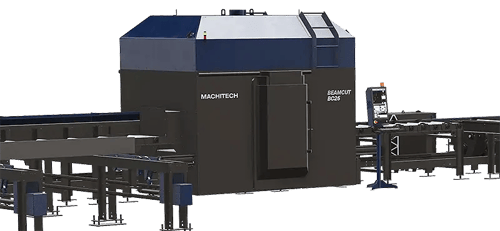

SYSTEM LAYOUT, INFEED TO FINISHED PART.
1
HYPERTHERM PLASMA
Full integration with XPR plasma for bolt-ready hole precision, virtually eliminating secondary grinding while extending consumable life in high-duty cycle environments.
Full integration with XPR plasma for bolt-ready hole precision, virtually eliminating secondary grinding while extending consumable life in high-duty cycle environments.
2
INFEED CONVEYOR
Engineered to handle heavy loads while ensuring efficient and precise material feeding. Custom size.
Engineered to handle heavy loads while ensuring efficient and precise material feeding. Custom size.
3
MOBILE MEASURING UNIT
Continuously monitors piece length along the infeed conveyor, delivering up to 2x greater measuring precision than standard devices, ensuring every cut location is exactly where it needs to be.
Continuously monitors piece length along the infeed conveyor, delivering up to 2x greater measuring precision than standard devices, ensuring every cut location is exactly where it needs to be.
4
CROSS TRANSFER CONVEYORS
Lift and carry or chain drag, built to be placed outside under harsh weather.
Lift and carry or chain drag, built to be placed outside under harsh weather.
5
FANUC 6-AXIS ROBOTIC ARM
Stronger and more powerful than the closest competition resulting in faster and more precise cuts
Stronger and more powerful than the closest competition resulting in faster and more precise cuts
6
PHOTO-LASER MEASURING DEVICE
Our custom Photo-Laser Measuring Device is unique to the industry allowing automatic split-second profiling and positioning of your piece and guarantees the most precise cut possible.
Our custom Photo-Laser Measuring Device is unique to the industry allowing automatic split-second profiling and positioning of your piece and guarantees the most precise cut possible.
7
SAFETY ENCLOSURE
The safety-latched work envelope provides secure access, automatically halting production if opened to protect your operators.
The safety-latched work envelope provides secure access, automatically halting production if opened to protect your operators.
8
OPERATING CONSOLE
State of the art touchscreen HMI control, allows for easy calibration, camera monitoring and 4.0 analytics.
State of the art touchscreen HMI control, allows for easy calibration, camera monitoring and 4.0 analytics.
9
OUTFEED CONVEYOR
Built for high capacity handling and seamless material discharge. Custom lengths available to suit any shop layout.
Built for high capacity handling and seamless material discharge. Custom lengths available to suit any shop layout.
100+ IN THE FIELD. PROVEN RESULTS.
Western Fabrication - Kelso, WA
Beamcut has cut our processing time down immensely, which allows our fitting people to work on more important objects. It is an integral part of our company and gives us a competitive edge to attain projects that before we probably wouldn't have gotten."
Mike Steward - Sr. Project Manager
NIC Global - Gallatin, TN
"Beamcut was the right answer because of the level of understanding that we got to quickly with them on our custom project. Our 2 machines have delivered the quality, speed, and repeatability we needed for our automotive high-volume programs."
Troy Wood - VP Midwest Operations
.webp?width=300&name=stengg2%20(1).webp)
ST Engineering Marine - Singapore
"As a premier shipbuilder based in Singapore, we required a solution to process and cut all types of profiles and beams, including custom bulb flats and aluminum t-beams. Their software integrated well with our current systems, streamlining our processes."
B.Sivakumar - VP Operations
YOUR MACHINE. YOUR PEACE OF MIND.
ON-SITE BY SPECIALISTS
INSTALLATION AND TRAINING
PHONE AND EMAIL
UNLIMITED REMOTE SUPPORT
TEAM OF 50+ TECHNICIANS
LARGEST SUPPORT NETWORK
INCLUDED WITH THIS MACHINE²
STANDARD FEATURES

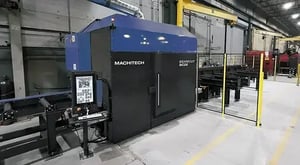

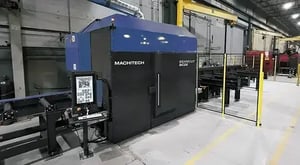

SEAMLESS PRODUCTION
Beamcut ensures seamless profile fabrication by automating the full process of all of your parts. Material handling, measuring, cutting, and layout marking with unmatched precision and efficiency out of raw material.

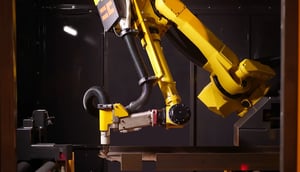

HIGHEST PAYLOAD ROBOT ARM
Equipped with either 50kg or 25kg heavy-duty 6-axis FANUC robot arms. The high payload provides a capacity for unrivaled protection to your robot and torch. Reducing maintenance and maximizing machine uptime.

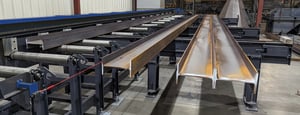

BUILT SIMPLE, SMART AND ROBUST
Machine uptime and reliability is paramount. Your projects depend on it. Beamcut is engineered to keep profile cutting simple yet robust, with every detail carefully engineered. Its thoughtful design will maximize safety, throughput, and reduce maintenance.

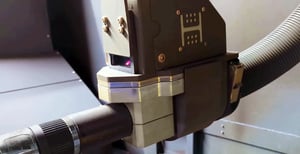

LASER MEASURING DEVICE
Beamcut brings high accuracy, speed, and repeatability with its laser measuring system. Continuously making live adjustments to cut and layout mark locations based on any variations in the material position and mill tolerances.

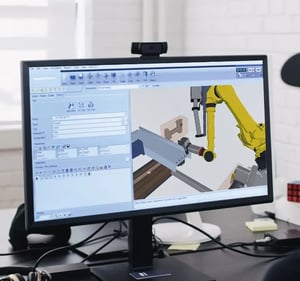

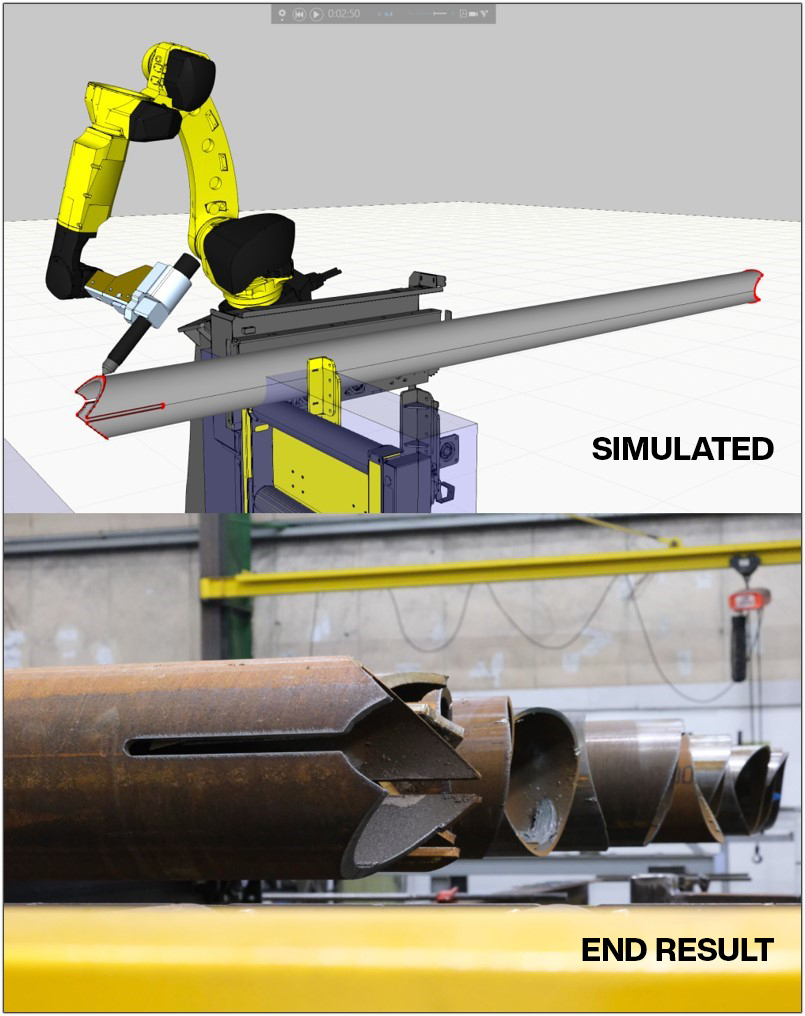

Beamcut Suite - Simulator
Fully compatible with NC1 and 3D CAD files. BeamcutSuite automatically pre-programs your parts offline. Providing part simulations, runtimes, and detection of errors on the drawings. This level of feedback prevents costly surprises from making it to production. Contributing to overall machine uptime and part quality.

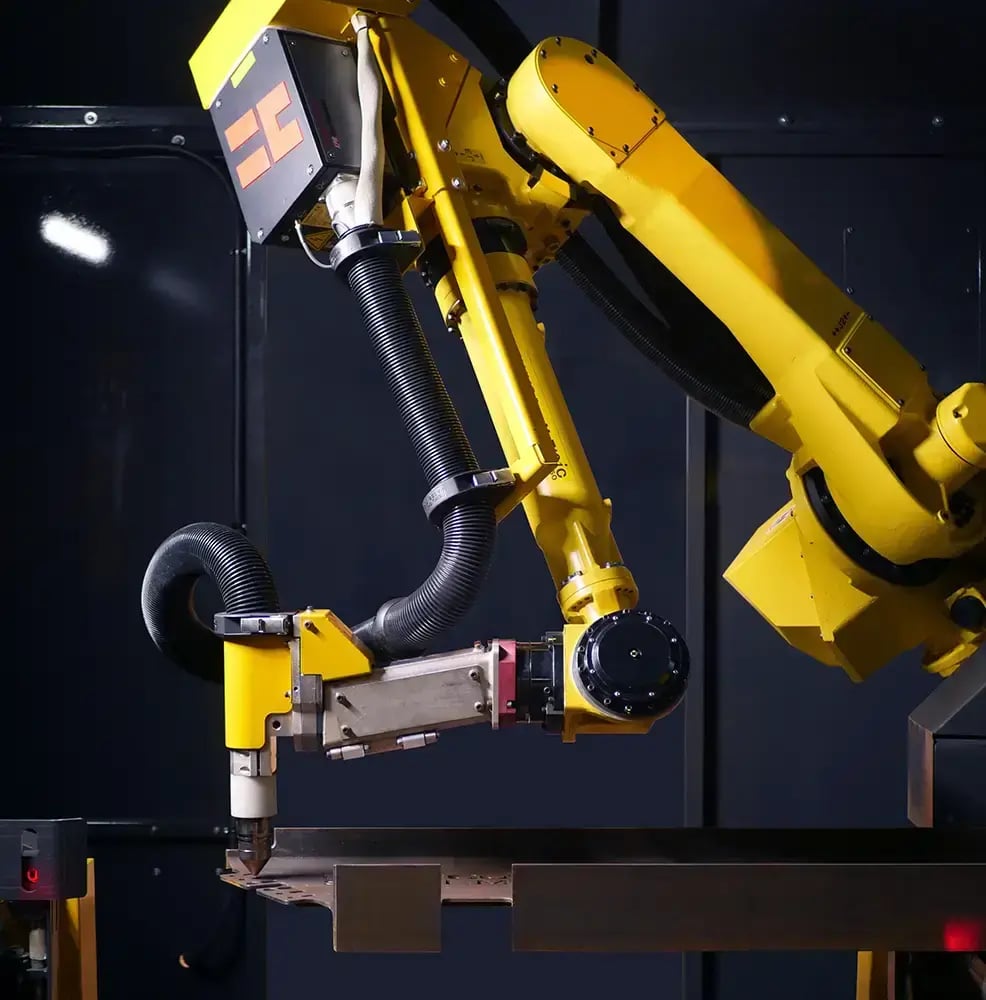

BREAKAWAY MAGNETIC TORCH
The high payload strength of our robot allows for protective features exclusively found on Beamcut. Equipped with magnetic torch breakaway to instantly detach on impact, and initiate an e-stop. Avoiding damage to the torch and further contributing to the uptime of the machine

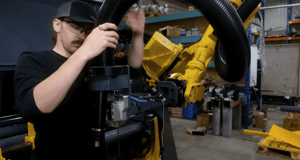

KNOWLEDGE BASE - SELF SERVICE
Free self-service platform, continuously updated with 500+ videos and articles offering support, training, tips, and maintenance walkthroughs. Use keywords to search for guidance. Create support tickets and check the status. Accessible from any device 24/7.

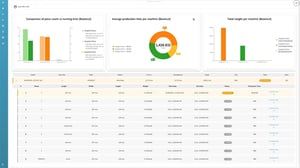

INDUSTRY 4.0 ENABLED
Every Beamcut includes built-in analytics. Providing you with detailed machine performance feedback at every moment. Allowing insight into part traceability, productivity metrics, and more. It also includes full access to the Knowledge Base for training and support articles and videos.
