FIBER TUBE XL
AUTOMATED INFEED TO OUTFEED, UP TO 26" DIAMETER AND 60' LONG

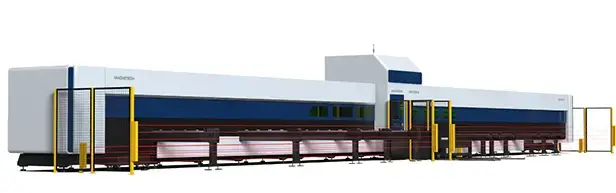

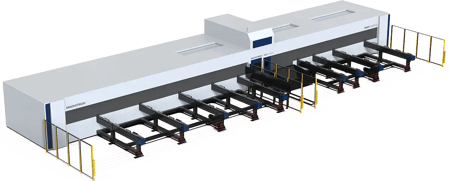

SYSTEM LAYOUT, INFEED TO FINISHED PART.
1
PERIMETER SAFETY AND LIGHT CURTAINS
Full enclosure with integrated light curtains around the loading and cutting zones. Breaking the curtain triggers an immediate safe stop, so automated cycles run without operators needing to be inside the work envelope.
Full enclosure with integrated light curtains around the loading and cutting zones. Breaking the curtain triggers an immediate safe stop, so automated cycles run without operators needing to be inside the work envelope.
2
CROSS-TRANSFER INFEED CONVEYOR
Drop your tubes, angles, channels, beams, and structural profiles onto the cross-transfer conveyor, which feeds individual pieces sideways onto the cutting line. Fully automated.
Drop your tubes, angles, channels, beams, and structural profiles onto the cross-transfer conveyor, which feeds individual pieces sideways onto the cutting line. Fully automated.
3
FULL LENGTH CELL ENCLOSURE
Class 1 laser enclosure runs the full length of the cutting cell and conveyors. Contains fumes, stray light, and noise without restricting operator visibility through laser-safe viewing panels. Front access door and direct integration with the fume extraction system (sold separately).
Class 1 laser enclosure runs the full length of the cutting cell and conveyors. Contains fumes, stray light, and noise without restricting operator visibility through laser-safe viewing panels. Front access door and direct integration with the fume extraction system (sold separately).
4
SMART CONTROL
Dual touchscreen console lets the operator monitor cutting status and manage programs on parallel displays without switching contexts mid-cycle. Loaded with tested cutting parameters for every process including bevel, optimized path nesting, and remote monitoring access.
Dual touchscreen console lets the operator monitor cutting status and manage programs on parallel displays without switching contexts mid-cycle. Loaded with tested cutting parameters for every process including bevel, optimized path nesting, and remote monitoring access.
5
VIEWING WINDOW
Large laser-rated viewing window puts the cutting head and active workpiece in direct view of the operator. Filters out harmful fiber laser radiation while keeping the cut visible for quality monitoring throughout the cycle.
Large laser-rated viewing window puts the cutting head and active workpiece in direct view of the operator. Filters out harmful fiber laser radiation while keeping the cut visible for quality monitoring throughout the cycle.
6
SHORT PART UNLOADING SYSTEM
Automated short-part unloader removes cut-offs and small finished parts as they separate from the tube. Keeps the chuck path clear, finished parts off the floor, and the operator out of the cutting zone during the cycle. (Available as an option)
Automated short-part unloader removes cut-offs and small finished parts as they separate from the tube. Keeps the chuck path clear, finished parts off the floor, and the operator out of the cutting zone during the cycle. (Available as an option)
7
CROSS-TRANSFER OUTFEED CONVEYOR
Finished parts in tube, angle, channel, beam, and structural profile travel out of the cutting cell onto the cross-transfer conveyor, which stages them sideways for collection.
Finished parts in tube, angle, channel, beam, and structural profile travel out of the cutting cell onto the cross-transfer conveyor, which stages them sideways for collection.
INTEGRATED WITH LANTEK FLEX3D™
Every Machitech pipe cutting system can be paired with Lantek Flex3D Tubes, a CAD/CAM platform built specifically for designing, nesting, and cutting tubes and pipes.

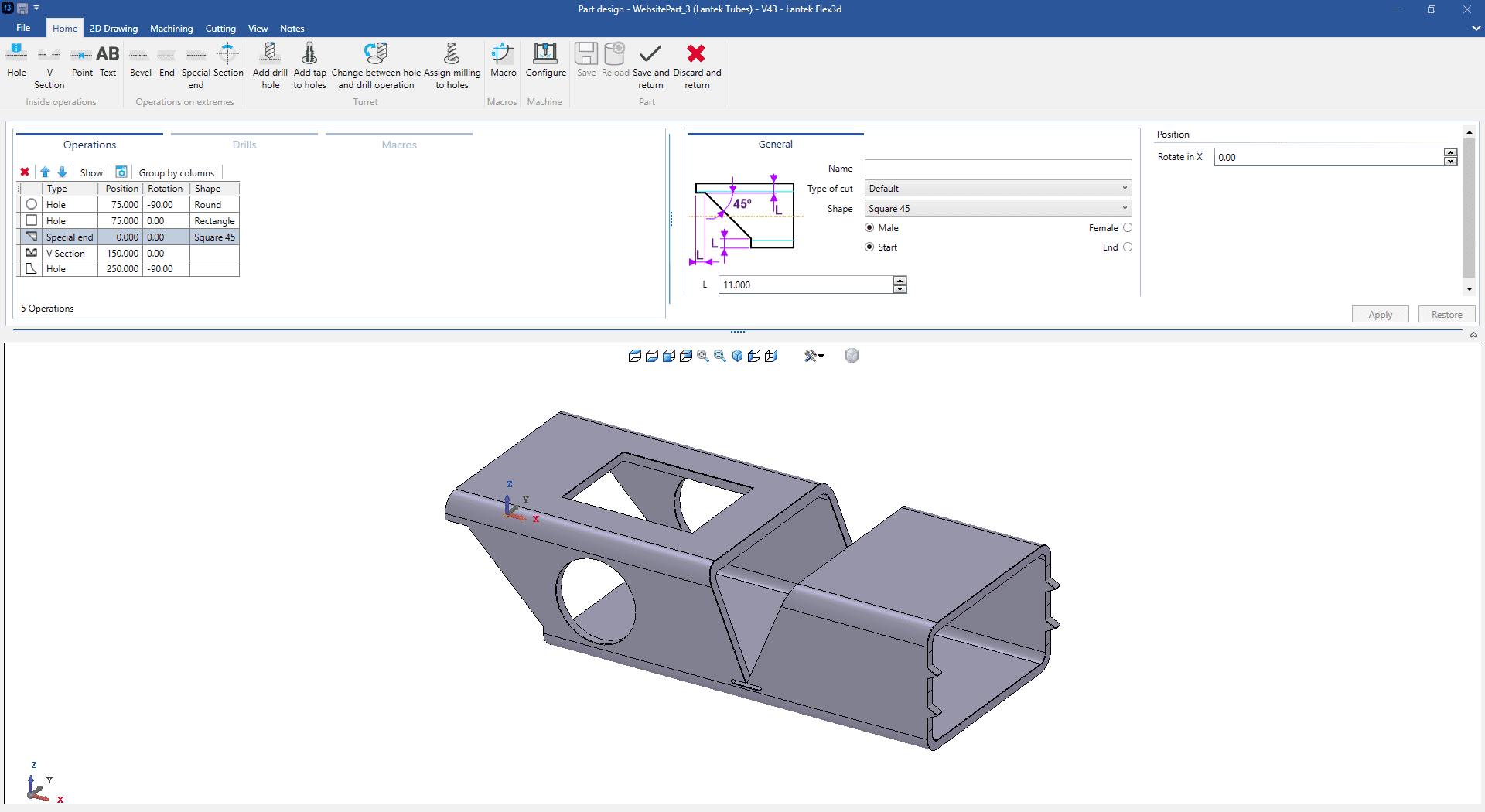

Lantek Flex3D Tubes imports geometry from the formats your team already works with, including SAT and IGES, with parametric editing that lets you change tube length, diameter, or any earlier operation without starting over. Design chamfers, contours, and intersections in 3D, then simulate the cut before it ever reaches the floor.
On the shop floor, Lantek handles nesting and remnant management to get the most out of every length, generates the NC program automatically, and supports machines across multiple axis configurations. Add the A2N 3D Importer to pull parts directly from 3D CAD files with automatic material and component detection. Less time on programming, more time cutting.
YOUR MACHINE. YOUR PEACE OF MIND.
ON-SITE BY SPECIALISTS
INSTALLATION AND TRAINING
PHONE AND EMAIL
UNLIMITED REMOTE SUPPORT
TEAM OF 50+ TECHNICIANS
LARGEST SUPPORT NETWORK
INCLUDED WITH THIS MACHINE¹
STANDARD FEATURES
3D CONTOUR BEVEL HEAD

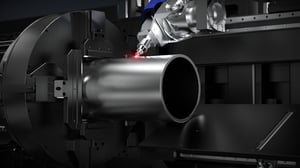

The TUBE XL bevel cutting head is designed to handle multi-axis movement, making them ideal for complex cuts on round, square, and rectangular profiles. The slim profile allows access to previously impossible profiles.
ADAPTIVE CLAMPING FOR ALL PROFILES

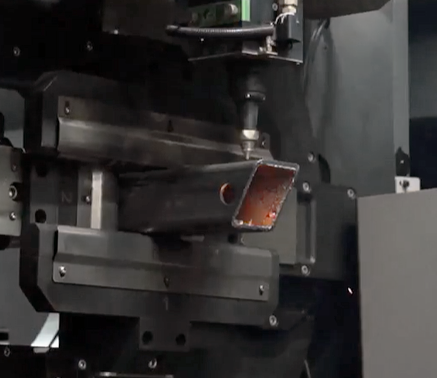

The Fiber TUBE XL features an adaptive clamping system that automatically adjusts for round, square, rectangular, oval, and custom profiles. Other industry leading features are available, like high speed rotation and clamping, self-centering and pipe position detection.
TRIPLE CHUCK SYSTEM - ZERO TAIL CUTTING
The 3-chuck design provides superior stability and precision, minimizing vibration, ensuring perfect alignment, and reducing material waste—making it ideal for high-speed, high-accuracy industrial tube cutting. It also enables zero tail cutting, for close to no material waste.
ROBUST AND VERSATILE frame design

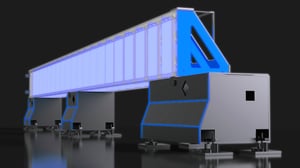

The Fiber Tube XL features a durable, reinforced frame, manufactured with a high precision manufacturing process to give it the strength and dynamic performance necessary to process large tubes and profiles at high speed.
ADVANCED SERVO-DRIVEN SUPPORTS

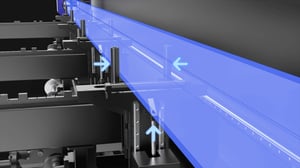

The advanced servo-driven active supports dynamically adjust with high sensitivity, guaranteeing stable movement and precise cutting.
Smart Control - intelligent & Intuitive
Large touchscreen controller provides easy operation. Features include tested parameters for all cutting processes including bevel, remote monitoring, and intelligent path nesting.
.webp?width=300&name=machitech-controller%20(1).webp)
Lantek Flex3D Nesting Software
Our tube laser machines are optimized for Lantek Flex3D, combining advanced nesting, intelligent path optimization, and full 3D cutting capabilities with high-speed precision. Lantek’s automation and adaptive parameter management enhance efficiency, while the Fiber TUBE XL ensures seamless, accurate cuts on round, square, and complex profiles.
