WHY STRUCTURAL STEEL FABRICATORS ARE MOVING TO ROBOTIC PLASMA CUTTING
March 18th, 2026
The Real Pain Points in Structural Steel Fabrication
Most fabrication shops still rely on a combination of manual labour, dedicated drill lines, and coping stations to process their beams and profiles. Each operation runs on its own machine, which means every piece of steel gets moved, repositioned, measured, and re-clamped multiple times before it's done. That material handling creates bottlenecks, and in tighter facilities, those machines eat up floor space that could be used elsewhere.
The bigger issue is that this process depends heavily on operator skill. A good layout man who can cope a beam accurately and hit the right drill locations is hard to find and harder to replace. When that person has an off day, the parts reflect it. Misaligned holes, incorrect cope geometry, cuts that are close but not right. Any of those sends the part back for rework, and rework is the quiet cost most shops underestimate until they start tracking it.
But the hardest challenge isn't finding good people. It's what happens when demand increases. Even the best crew has a ceiling. When a big project lands, the only way to scale output with a manual process is to add more people or ask your team to work longer. Neither is a sustainable answer.
How Robotic Plasma Cutting Systems Work
Robotic plasma cutting consolidates what used to be four or five separate operations into one continuous automated workflow. A single machine handles coping, hole cutting, slot cutting, beveling, and layout marking all in one pass, without a person touching the material between operations.
It starts with a measuring system that automatically profiles each piece as it comes down the infeed conveyor, eliminating manual measuring and keeping material moving without interruption. While mechanical contact sensors are common on robotic cutting systems, laser measuring is the better choice for structural steel. It reads profile position without touching the material, so surface rust, mill scale, and debris have no effect on accuracy. It measures faster, has no moving parts to wear out, and holds its accuracy over time without adding maintenance overhead.
Once the profile is confirmed, a heavy-duty six-axis robotic arm executes the full cut sequence. Payload rating matters more than most buyers realize when evaluating a robotic cutting system. A higher-rated arm carries the torch with more rigidity through the cut, which means less deflection, less vibration, and tighter tolerances on every operation. On lighter-payload robots, that rigidity drops off over time as components wear, and cut quality drifts with it. A higher payload robot holds its accuracy longer, reduces maintenance frequency, and protects the torch on impact without transferring shock back into the arm.
The plasma source runs fully integrated with the robot's motion control, continuously adjusting arc parameters as the torch moves through each operation. The choice of plasma system matters here. Hypertherm's XPR series is the industry benchmark for structural fabrication, largely because of its True Hole technology, a cutting process that produces bolt-ready holes in mild steel without secondary finishing. Parts come off the machine meeting AISC and CISC requirements for thermally cut holes in structural bolted connections, ready for assembly with no reaming or grinding required.
Before any material reaches the machine, the right software setup makes a significant difference to how smoothly production runs. Two things matter most. First, the ability to import NC1 and 3D CAD files directly from detailing software like Tekla Structures, SDS2, or Advance Steel, without manual re-entry or file conversion. That direct connection removes a whole category of programming errors and keeps the workflow tight between the engineering office and the shop floor. Second, an offline simulation tool that lets operators verify every robot movement, catch drawing errors, and get a run time estimate per part before anything gets cut. Problems identified at a desk cost nothing to fix. The same problem discovered mid-cut costs material, machine time, and operator attention. A system without offline simulation is essentially asking the machine itself to be the quality check, and that is an expensive way to find out something was wrong.

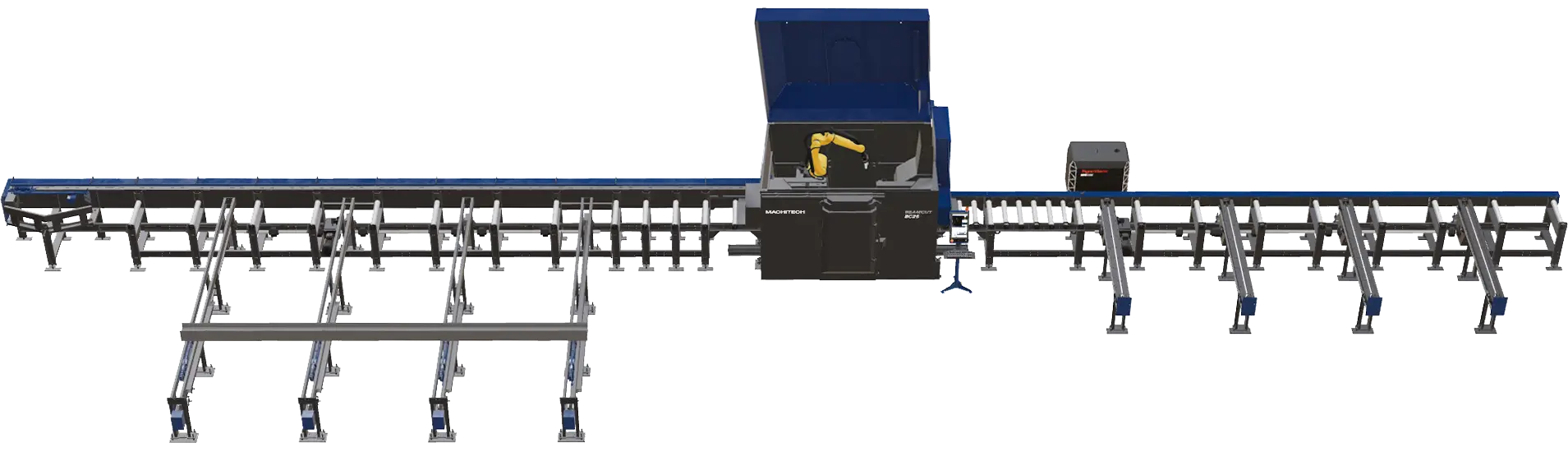

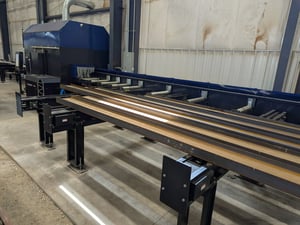

That combination of non-contact laser measuring, a high-payload robotic arm that holds its accuracy over time, Hypertherm XPR plasma with True Hole technology for bolt-ready holes, direct NC1 and 3D CAD file integration, and offline simulation that catches errors before they reach the floor is what allows a single operator to consistently produce parts that previously required multiple skilled tradespeople and several machines. Machitech's Beamcut robotic cutting system is built around exactly these principles, bringing all of it together in one compact, production-ready cell designed specifically for structural steel fabricators.
Ready to See What This Looks Like in Your Shop?
Machitech offers live demos where your actual profiles get processed on the Beamcut, so you leave with real cycle times to compare against your current process.
Contact our team to see how Beamcut processes your actual profiles in a live demo backed by ROI numbers.
